Istec SpeedSys T10

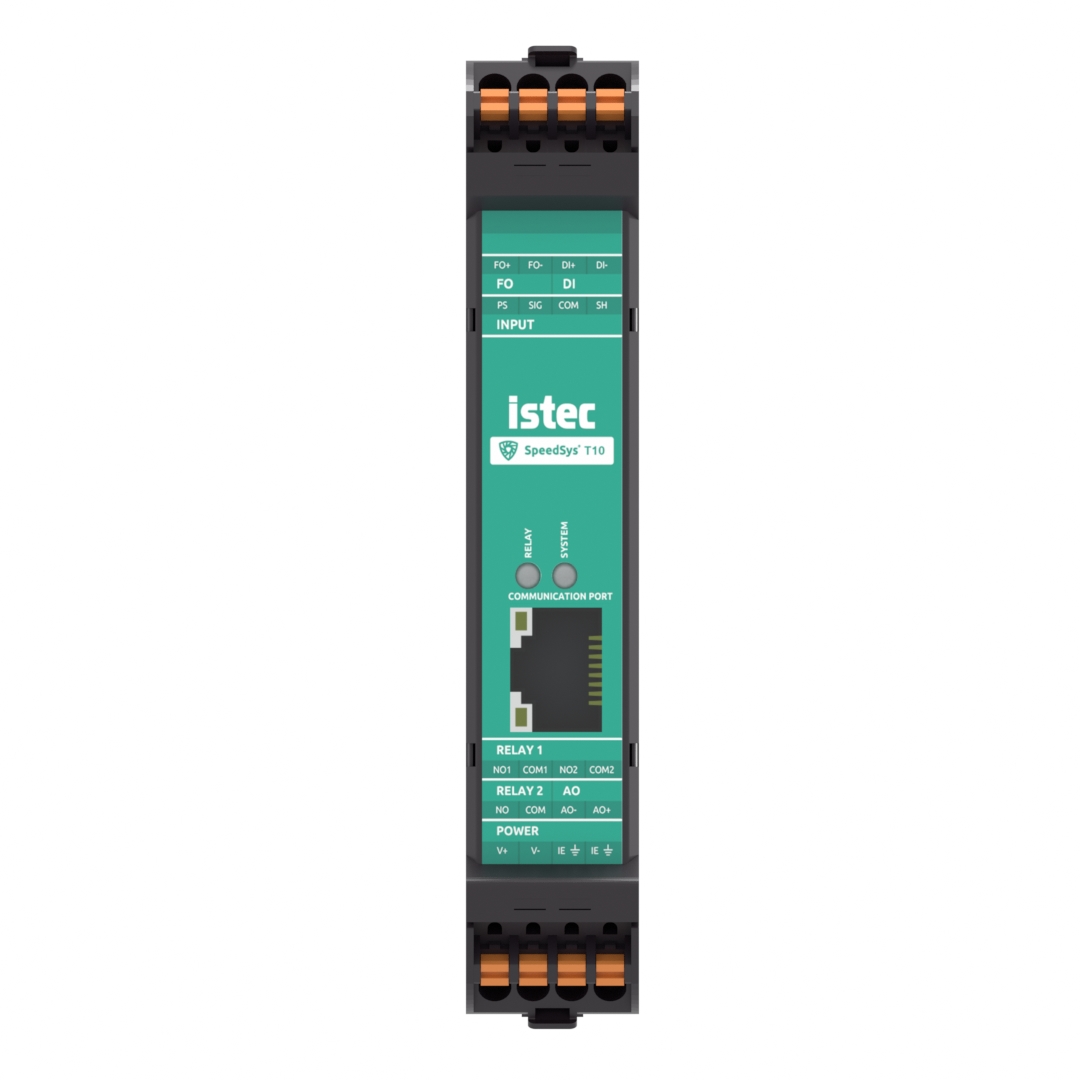

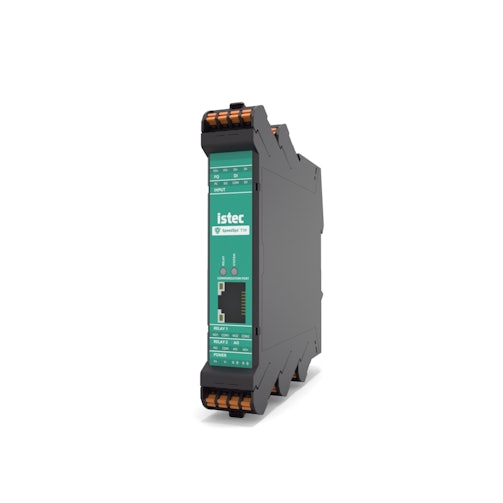

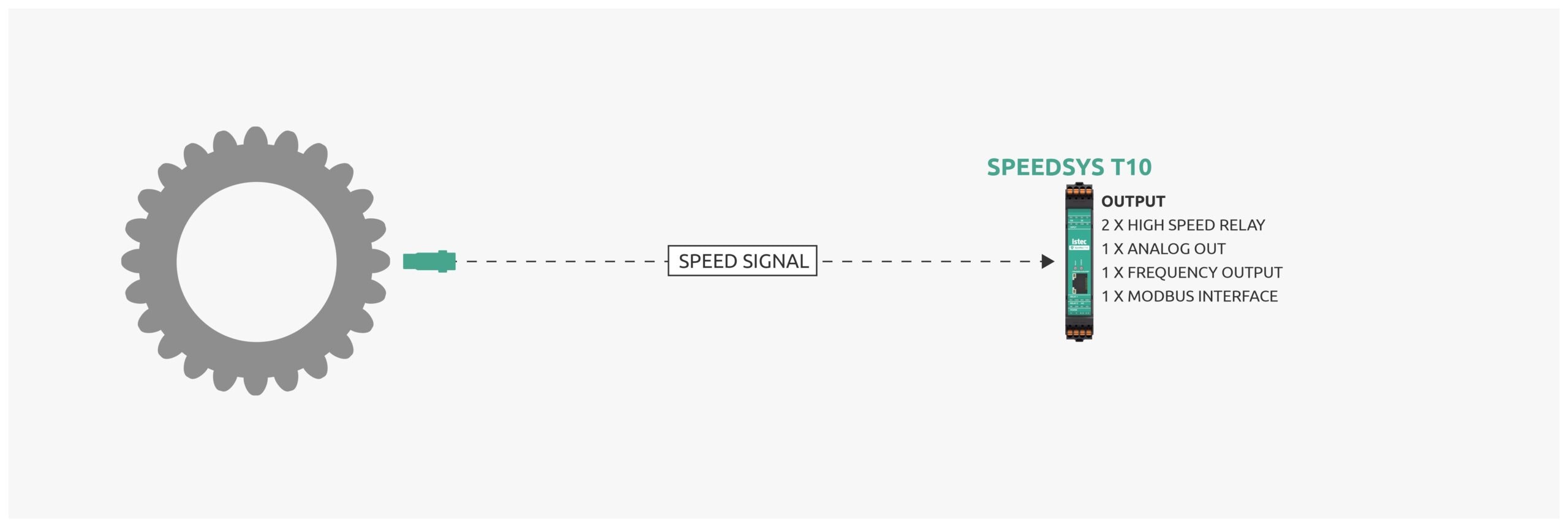

The SpeedSys T10 is a single-channel speed monitor and switch that delivers speed monitoring functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications. The T10 is part of the SpeedSys Tx0-series with the T20 and T30.

Design Concept

The SpeedSys T10 has two relays. The system accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders. Due to its compact design the T10 has a small technical footprint and features a low-impact installation. The T10 comes with easy to use push-in connectors and is mounted on a DIN-rail. Due to its compact design the T20 has a small technical footprint and features a low-impact installation. The T20 comes with easy to use push-in connectors and is mounted on a DIN-rail.


Application

The SpeedSys T20 is used as a 2-channel monitoring and switching device for speed conditions on rotating machinery. Typical applications are:

  • Aeroderivatives
  • Micro turbines
  • Wind turbines
  • Gas and steam turbines
  • Hydro turbines
  • Compressors
  • Expanders
  • Marine applications
  • Elevators
  • General automation
Speedsys T10

Features

The ultimate speed transmitter

The system has two configurable high speed relays for multiple speed functions and a highly accurate analog output for further processing.

Easy to use and integrate

The SpeedSys T10 accepts a wide variety of sensor inputs, comes with an accessible software suite, and has a Modbus interface for further integration.

Small technical and financial impact

The SpeedSys T10 is a DIN-rail frequency converter that provides a cost-effective solution for speed monitoring functions on rotating machinery.

System

  • 2 independent channels
  • Redundant sensor inputs
  • Redundant power supply
  • 4 high speed relays
    • 2x DPST
    • 2x SPST
  • Fast 8 ms hardware response time (relays)
  • Highly accurate analog signal (4-20 mA)
  • Signal filter and line amplifier
