SpeedSys T20

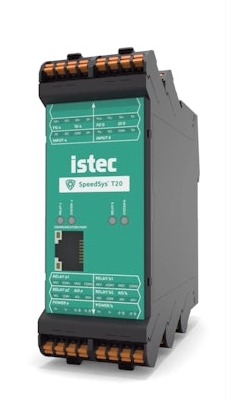

The SpeedSys T20 is a dual-channel speed monitor and switch that delivers speed monitoring and protection functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications. The T20 is part of the SpeedSys Tx0-series with the T10 and T30.

Design Concept

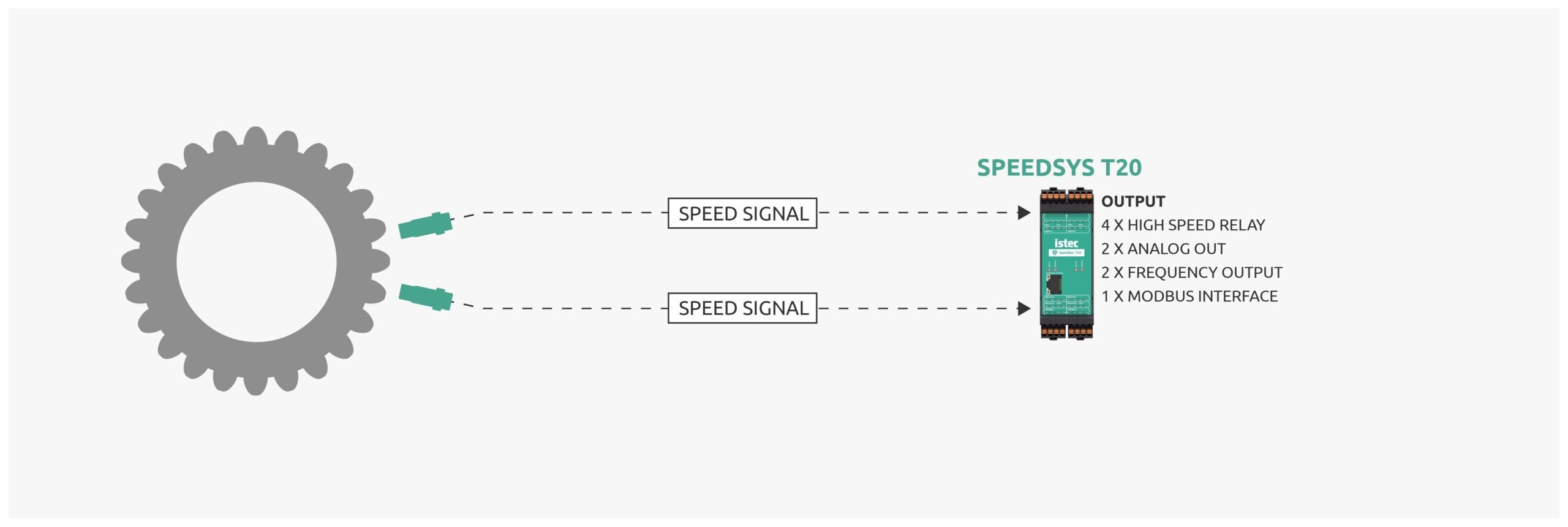

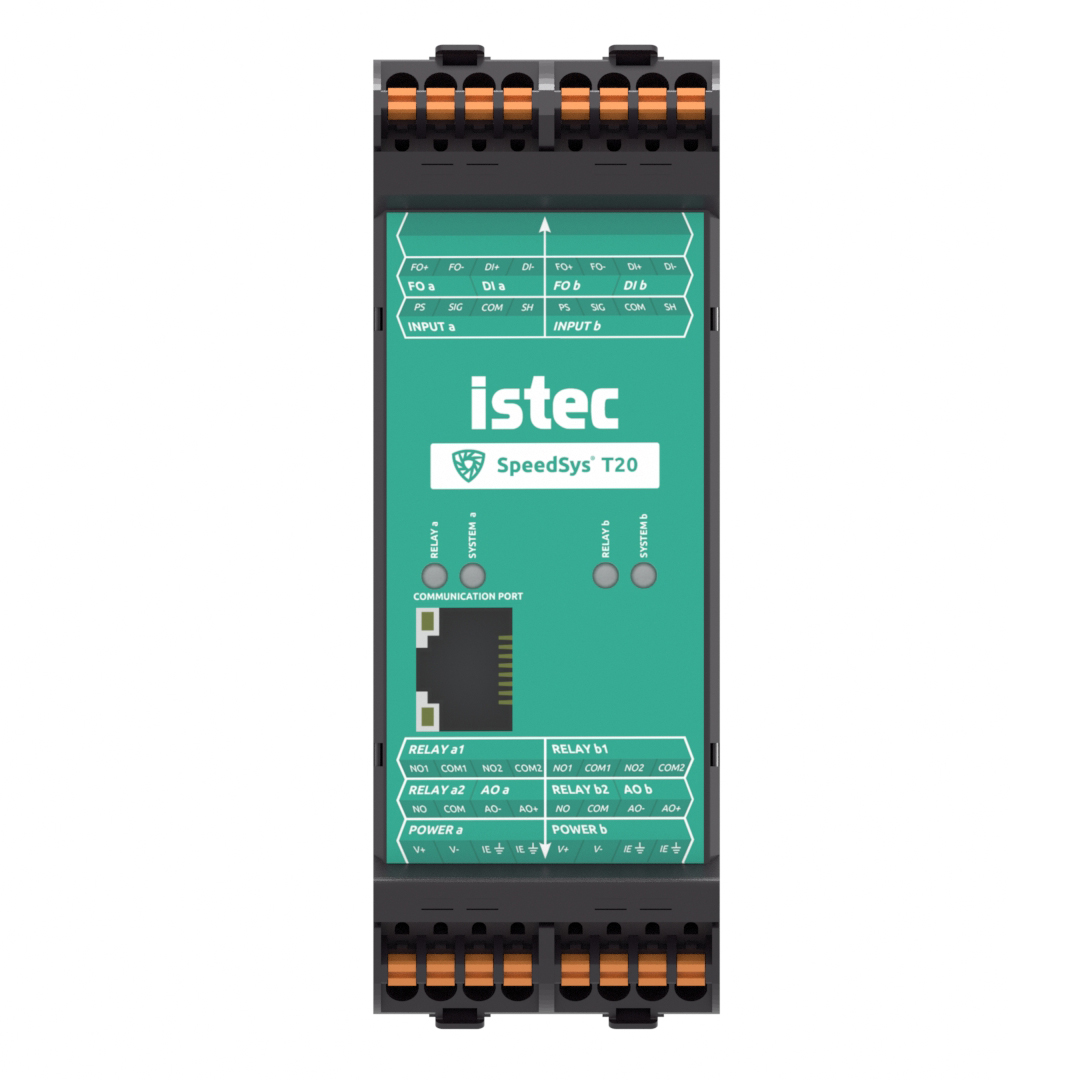

The SpeedSys T20 has four relays. The system accepts signal inputs from 3-wire voltage sensors (Hall-effect and proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders. Due to its compact design the T20 has a small technical footprint and features a low-impact installation. Due to its compact design the T20 has a small technical footprint and features a low-impact installation. The T20 comes with easy to use push-in connectors and is mounted on a DIN-rail.


Application

The SpeedSys T20 is used as a 2-channel monitoring and switching device for speed conditions on rotating machinery. Typical applications are:

  • Aeroderivatives
  • Micro turbines
  • Wind turbines
  • Gas and steam turbines
  • Hydro turbines
  • Compressors
  • Expanders
  • Marine applications
  • Elevators
  • General automation
SpeedSys T20

Features

Redundant input channels

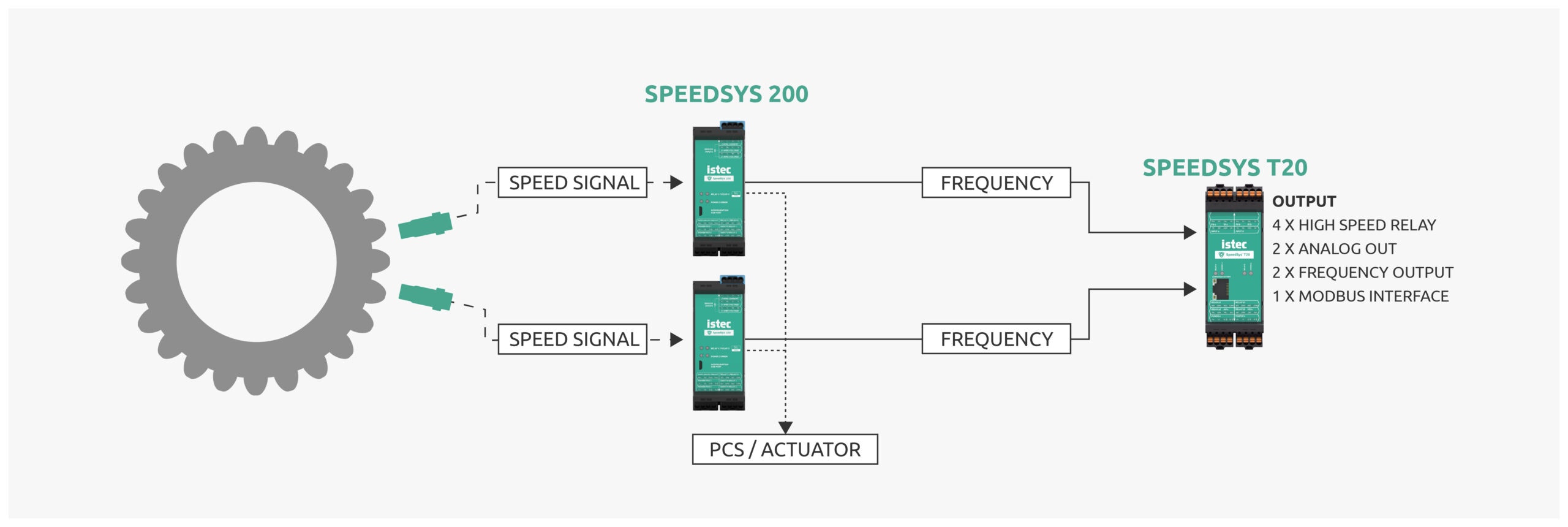

The SpeedSys T20 features redundant input channels, making it suitable for speed protection and monitoring.

Multiple input signals

The system can process input signals from 3-wire voltage sensors (Hall-effect and proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders.

Industry standard outputs

The SpeedSys T20 connects every common speed function to any industry standard output.

System

  • 2 independent channels
  • Redundant sensor inputs
  • Redundant power supply
  • 4 high speed relays
    • 2x DPST
    • 2x SPST
  • Fast 8 ms hardware response time (relays)
  • Highly accurate analog signal (4-20 mA)
  • Signal filter and line amplifier

Configurations
